Product Numbers:GDT1508278IE
Product description:15 Inch ITO Touch Sensor, ITO Version, 2 Glass

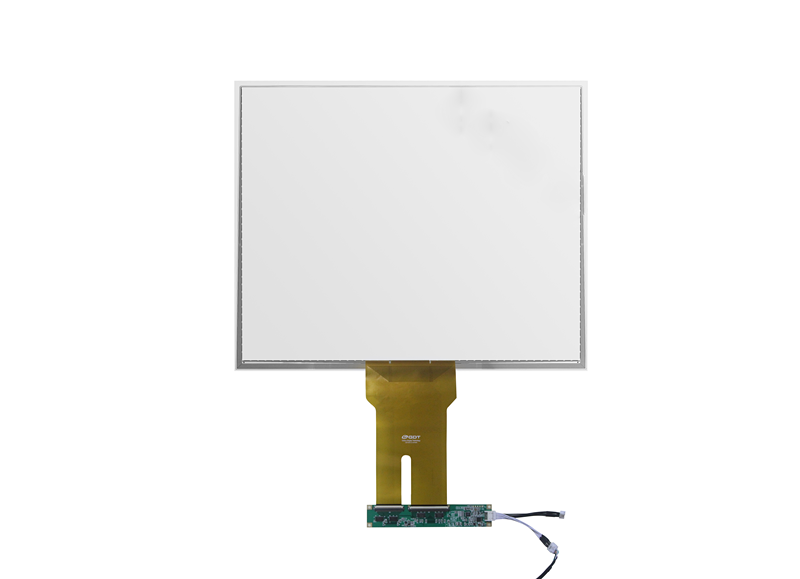

15 Inch ITO Evolution Capacitive Touch Panels
With a evolution ITO touch panel and chip-on-board (COB) touch controller, different thick strengthened cover glass with/without anti-glare treatment makes them well suited for deployment in a wide variety of commercial and industrial environments. Support various customization service, small quantity request and short development time.
1.Touch Screen is consisted of Glass Cover Lens + Glass DITO Sensor + EETI Controller+ USB/RS232/IIC Interface (optional)
2. Thickness & Dimension of Cover Lens can be customized
3. Etched AG Function Coating can be add, colourful Logo with can custom-made.

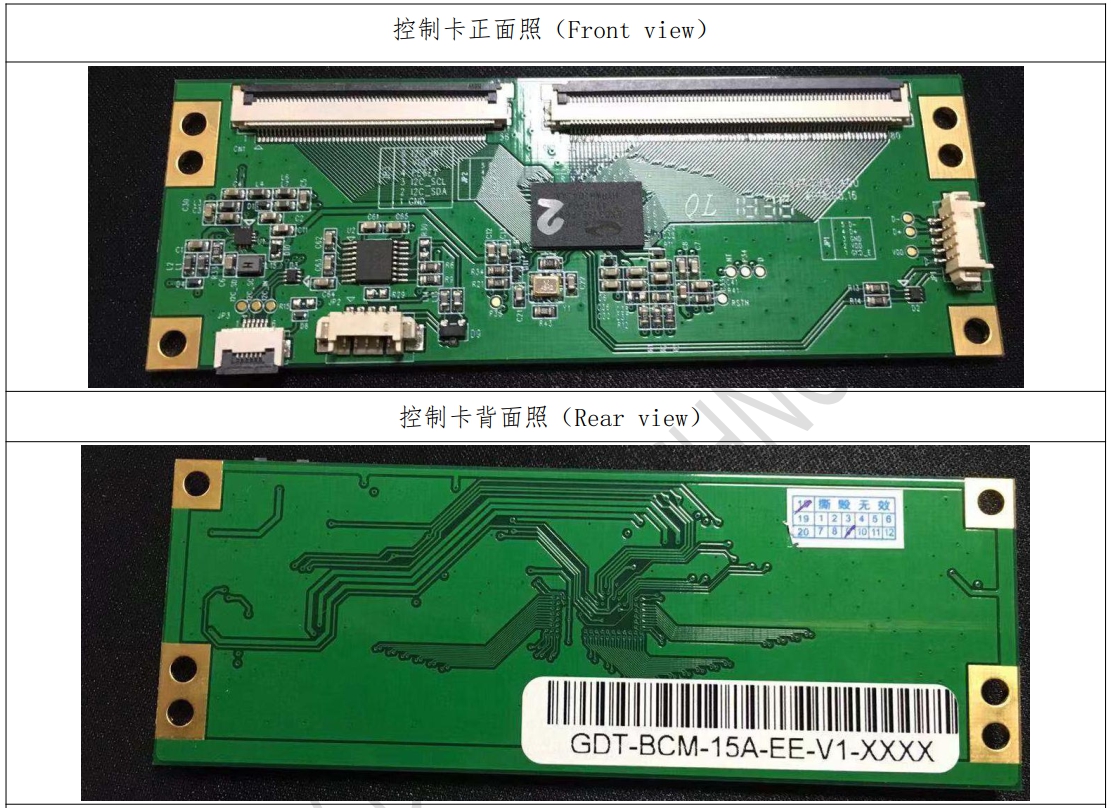

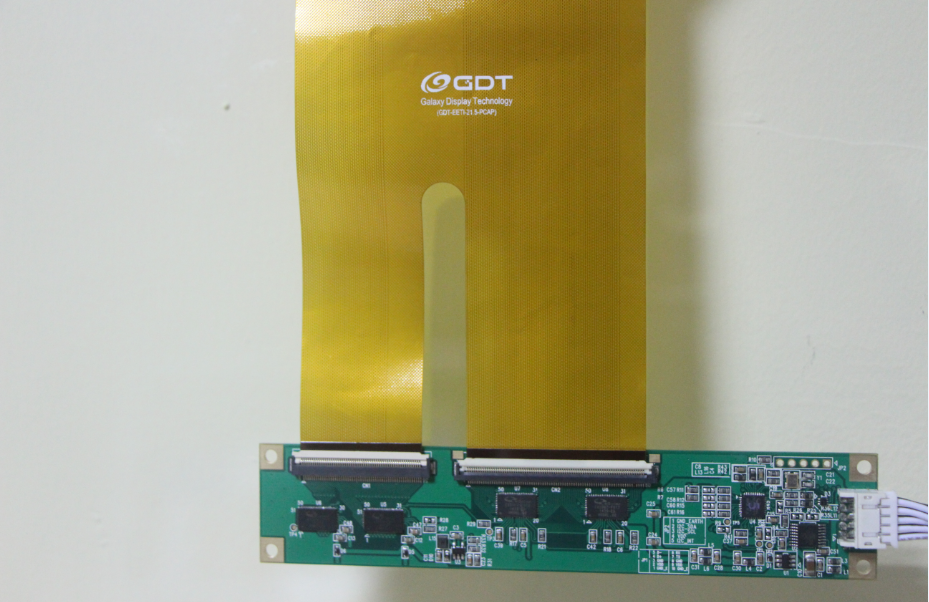

EETI Controller Board (USB/ RS232/ IIC Interface can Optional)
Specification
Items |
Specifiaction |
Cover Lens O.D. |
353.4 mm * 281.40 mm |
Sensor Glass O.D. |
323.10 mm * 251.79 mm |
Sensor Glass Actice Area |
306 mm * 230 mm |
Cover Lens Visual Area |
305 mm * 229 mm |
FPC/COF Thickness |
0.3 mm ± 0.05 mm |
Mechanical Characteristics
Items |
Condition |
Pass Criteria |
|
|
Panel |
Ball Drop Test |
227g±2g 40cm |
No damage at each cycle drop 5points and each point drop 1 time only |
Hardness |
Pencil：6H Pressure:1N/45° |
Hardness≧6H |
|
Warpage |
By Cage |
Warpage≦Length*0.1% Unit:mm |
|
FPC/COF FPC/COF Reliability |
Direction of peeling off |
90° |
Strength ≧ 500gf/cm |
Speed of Pulling out |
50mm/min |
||
Touch Controller
