5 To 65 Inch 2-Glass ITO PCAP Touch Panel
Curved Touch Screen Panel & Optial Bonding Solution
The 11th generation Capacitive Touch Foil;size rangs from 32"to 84".
TOUCH SCREEN DISPLAY WITH RTP/CTP/IR TOUCH TECHNOLOGY
G+G Touch Screen Panel Kit, Touch Screen Monitor

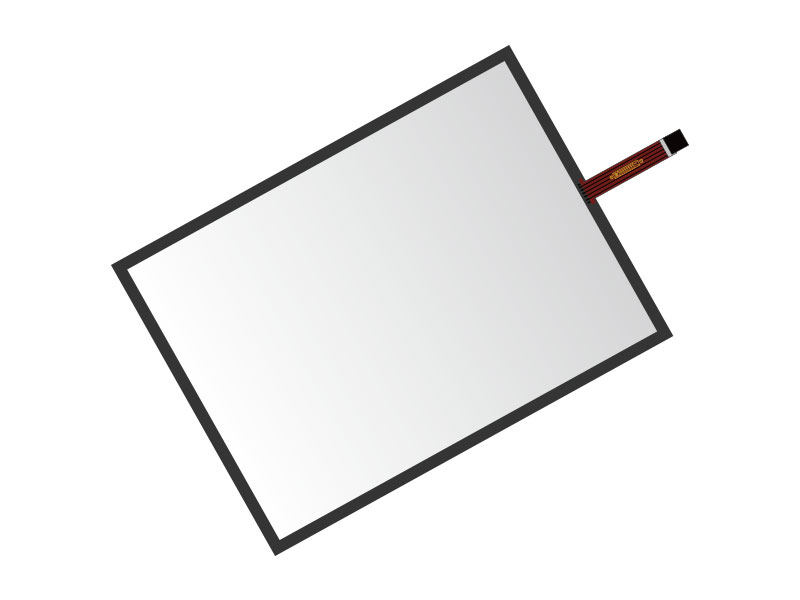

Product Numbers:GDT-5W-RTP-Series

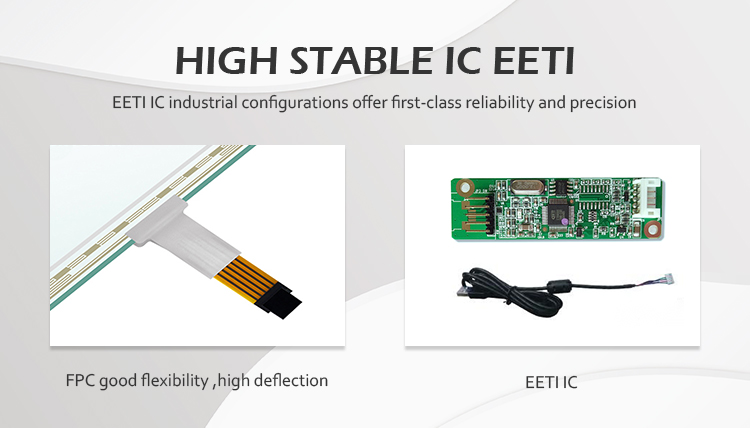

Product description:5 wire resistive touch technology,EETI chip solutions and drivers,ITO Film+ITO Glass structure.
GDT 5-wire resistive touchscreens are the preferred solution for applications that demand reliability,input flexibility,and anti-interference.The screens work with EETI chip solutions and drivers under a wide variety of operating systems,and are available in a set of standard products as well as customized designs.
♦ Pure plane structure,excellent craftsmanship,slim and smooth design.

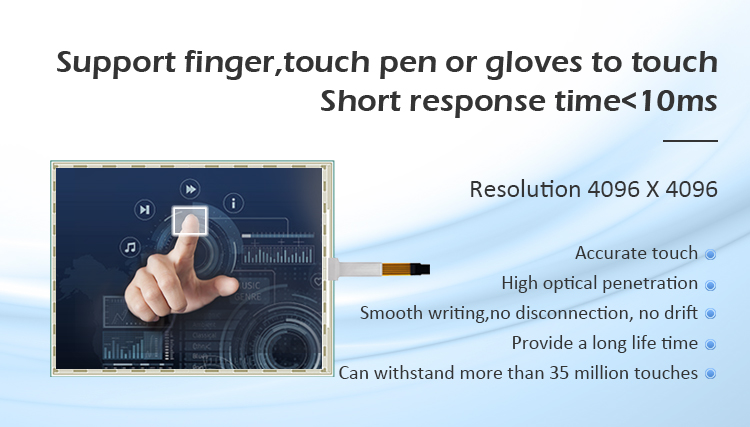

♦ Accurate touch,high sensitivity,smooth writing,no disconnection ,no drift.
♦ Total thickness about 2.3mm,use mist hard coating & anti-newton rings,prevent scratches.
♦ Can be sealed against contamination,support NEMA 4/4x/12.
♦ Can meet the pencil hardness 3H per ASTM D3363.
♦ Own class 1,000 clean room,full inspection,high quality,fast delivery.
| Product Name: | 5 wire Resistive Touch Panel | Model No. | GDT-5W-XXXX |
| Available Size: | 7",10.4",12.1",14.1",15",15.6", 17",17.3",18.5",19",21.5",22" | Resolution | 4096 X 4096 |
| Light Transmission: | ≥75% | Input Method: | Finger,Pen Stylus |
| Insulation Impedance: | Exceeds 20M ohm, @DC 25 | Touch Point | Single Point |
| Structure | ITO Film+ ITO Glass | Thickness | 1.4 mm |
| Chip Solution | EETI | Interface | USB 2.0 |
| Surface Hardness | 3H | Touch Durability | 35 Million Touches |
| Operational Voltage | 3V to 7V DC | Operation Temperature | -20°C- 70°C |
| Humidity | 90% RH, Noncondensing | Storage Temperature | -30°C- 80°C |
| Warranty | 1 Year | Product Certified | RoHS,REACH,CE,FCC |
| Customizable | Support | Operation Systems | Windows,Android,Linux |
