5 To 65 Inch 2-Glass ITO PCAP Touch Panel
Curved Touch Screen Panel & Optial Bonding Solution
The 11th generation Capacitive Touch Foil;size rangs from 32"to 84".
TOUCH SCREEN DISPLAY WITH RTP/CTP/IR TOUCH TECHNOLOGY
G+G Touch Screen Panel Kit, Touch Screen Monitor

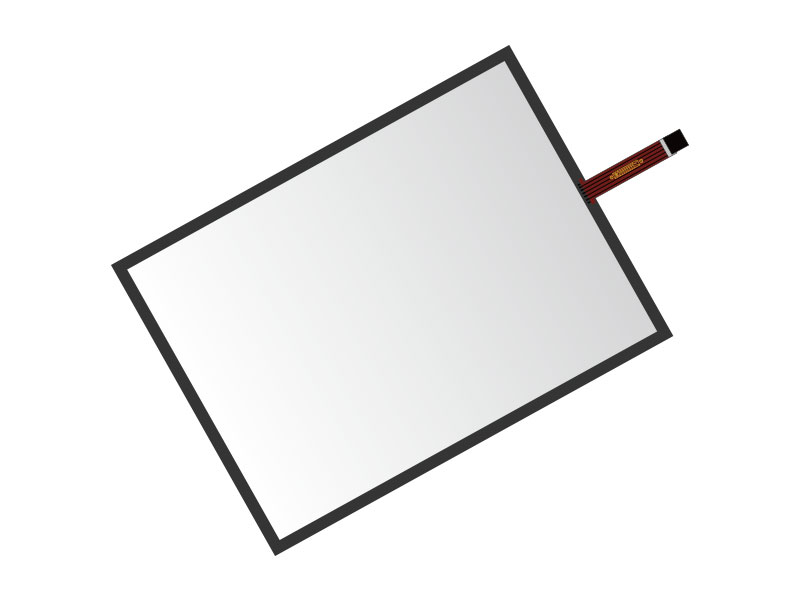

Product Numbers:GDT-5W-080A5B01

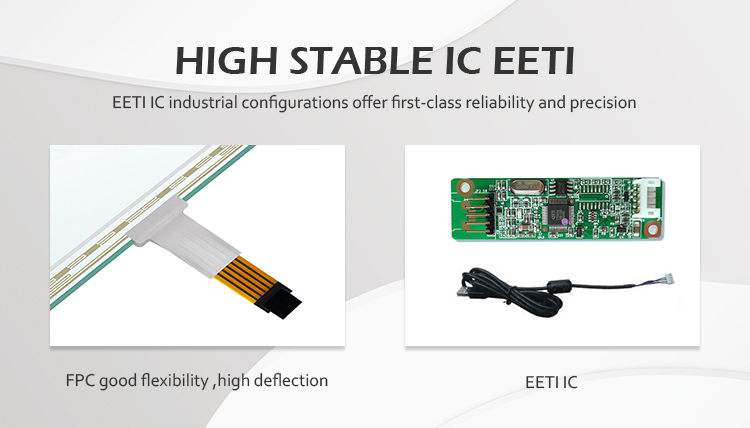

Product description:5 wire resistive touch technology,EETI chip solutions and drivers,ITO Film+ITO Glass structure.
GDT 5-wire resistive touchscreens are the preferred solution for applications that demand reliability,input flexibility,and anti-interference.The screens work with EETI chip solutions and drivers under a wide variety of operating systems,and are available in a set of standard products as well as customized designs.
Product Features Technical Parameters
| Product Name | 5 wire 8" Resistive Touch Panel | Model No. | GDT-5W-080A5B01 |
| Outline Size | 183*141mm | View Area | 164*123.1mm |
| Ratio | 4:3 | Resolution | 4096 X 4096 |
| Available Size | 8"-21.5" | Touch Point | Single Point |
| Structure | ITO Film+ ITO Glass | Thickness | 1.4 mm |
| Chip Solution | EETI | Interface | USB 2.0 |
| Surface Hardness | 3H | Touch Durability | 35 Million Touches |
| Operational Voltage | 3V to 7V DC | Operation Temperature | -20°C- 70°C |
| Humidity | 90% RH, Noncondensing | Storage Temperature | -30°C- 80°C |
| Warranty | 1 Year | Product Certified | RoHS,REACH,CE,FCC |
| Customizable | Support | Operation Systems | Windows,Android,Linux |
