Product Numbers:GDT-C430200702B
Product description:Multi-touch 43-inch Curved touch monitor, 3840*2160

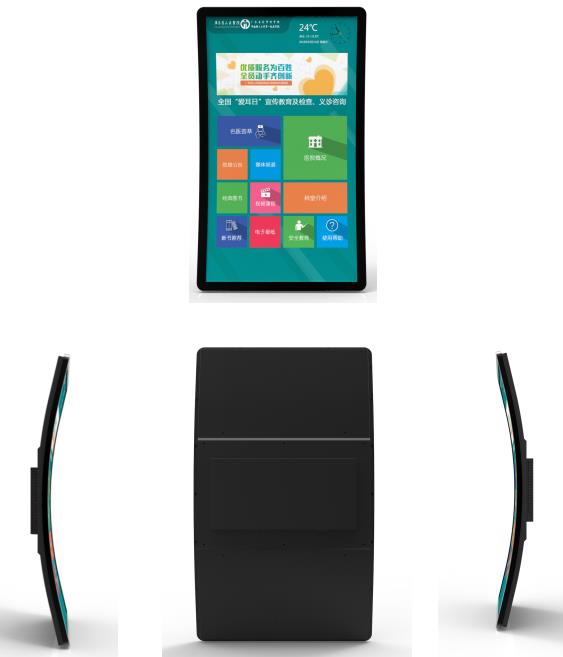

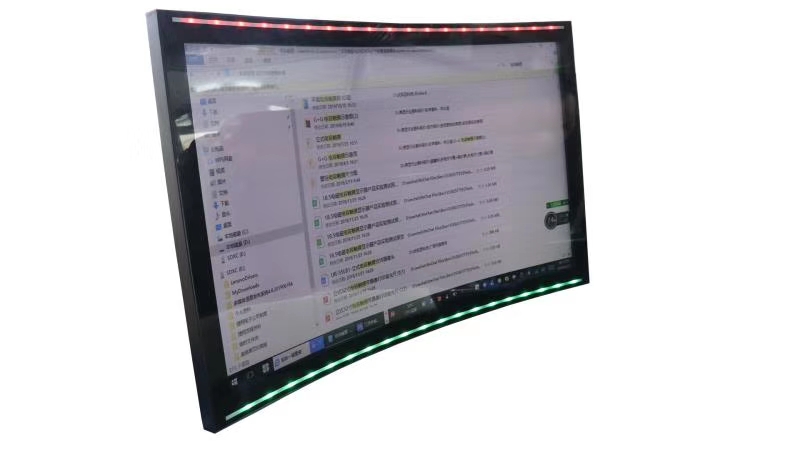

43-inch Curved Touchscreen Monitor
1. Product
2. Features
GDT curved touchscreen monitors cover size of 32-inch, 43-inch. Design with a compact form true flat are well-suited for entertainment kiosk,digital signage,self-service kiosk applications.
(1). 43" Curved touchscreen monitor design with ITO version Projected Capacitive (PCAP) technology."
(2). Large format, deep curved sizes
(3). VGA, HDMI interface
(4). Portrait or Landscape mode supported via VESA mounted
(5). Custom bending and monitor configuration available
(6). Enhanced solution for signage, kiosks and other public information terminals
3. Specification
| ◆ Display Panel◆ | |
| Items | SPEC |
| Screen Size | 43 inch |
| Driver Element | a-Si TFT active matrix |
| Display Area | 941.184 x 529.415 mm |
| Number of Pixels | 3840*2160 |
| Pixel Arrangement | RGB Vertical stripe |
| Screen Ratio | 16:9 |
| Curvature | R=1500/K |
| White Luminance (center) | 400 cd/m²（Typ.） |
| Viewing Angle | 89/89/89/89(Typ.)(CR≥10) |
| Pixel Pitch | 0.2451 x 0.2451 mm |
| Surface Treatment | Anti-Glare, 3H (Haze 25%) |
| Display Colors | 10 bit (8-bit+FRC) |
| Contract | 1300：1（Typ.） |
| LED Life | 50K |
| Frame Rate | 60 Hz |
| Operating Time | 7/24 |
| Working Temperature | -10℃ ～ +60℃ |
| ◆PCAP Touch Panel ◆ | |
| Item | SPEC |
| Touch Technology | Projected Capacitive Touch |
| Surface Hardness | 6H |
| Transmittance | >85% |
| Working Temperature | 0℃ ～ +50℃ |
| Storage Temperature | -10℃ ～+60℃ |
| Working Humidity | 90% at 40℃ |
| linearity | ±2 mm |
| Touch Lifetime | >300，000，000 times |
| Max Resolution | 4096 x 4096 |
| Touch Points | 10 points (default) |
| Working Input Voltage | 5 V,DC |
| Interface | USB (default) |
| Response Time | <25 ms |
| Maximum Operating Frequency | 100 MHz |
| ◆AD Board ◆ | |
| Item | SPEC |
| Video Interface Port | HDMI |
| Power Supply Port | 220 V |
| Audio | Audio In/Earphone Out |
| OSD Control | Menu，Automatic，Left，Right, Power on/ Off |
| OSD language | English(Default) French, German, Italian, Spanish, Portuguese, Japanese, Korean are optional |
| Working temperature | -10℃ ～ +60℃ |
| Supported System | Windows/Android/Linux/ Windows CE |
| ◆Whole Unit Mechanical◆ | |
| Whole Unit Size | 990 mm x 594 mm x 136 mm |
| Unit Net Weight | 30 Kg |
| Package Size | 1150 mm x 26 mm x 720 mm |
| Gross Weight | 36Kg |
| VESA Mount Size | See drawing for details |
| Power Consumption | ~100 W |
